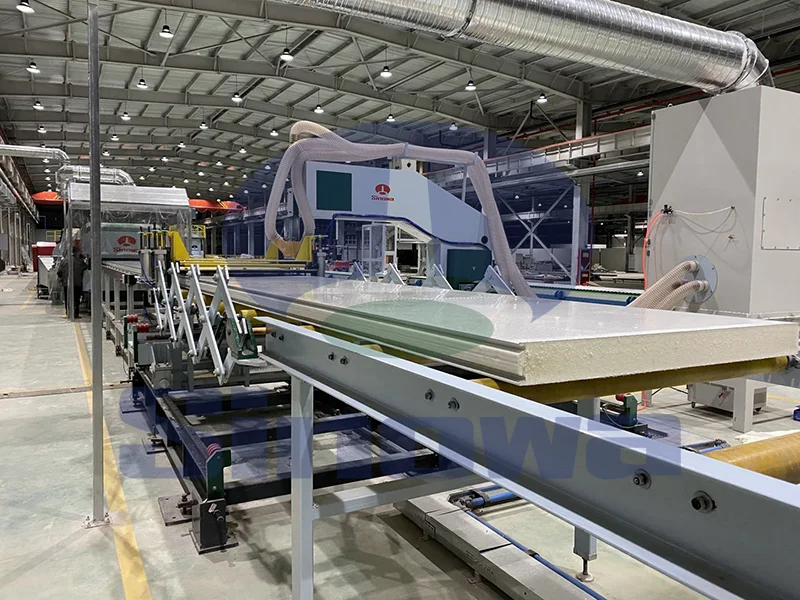

The color steel sandwich panel line is a specialized equipment system used in the modern construction industry to produce high-quality composite panels. This color steel sandwich panel manufacturing line combines metal panels with insulation core materials through automated processes to produce building materials that combine structural strength and insulation performance.
The color steel sandwich panel production line is a complete industrial equipment system, mainly consisting of the following core components:

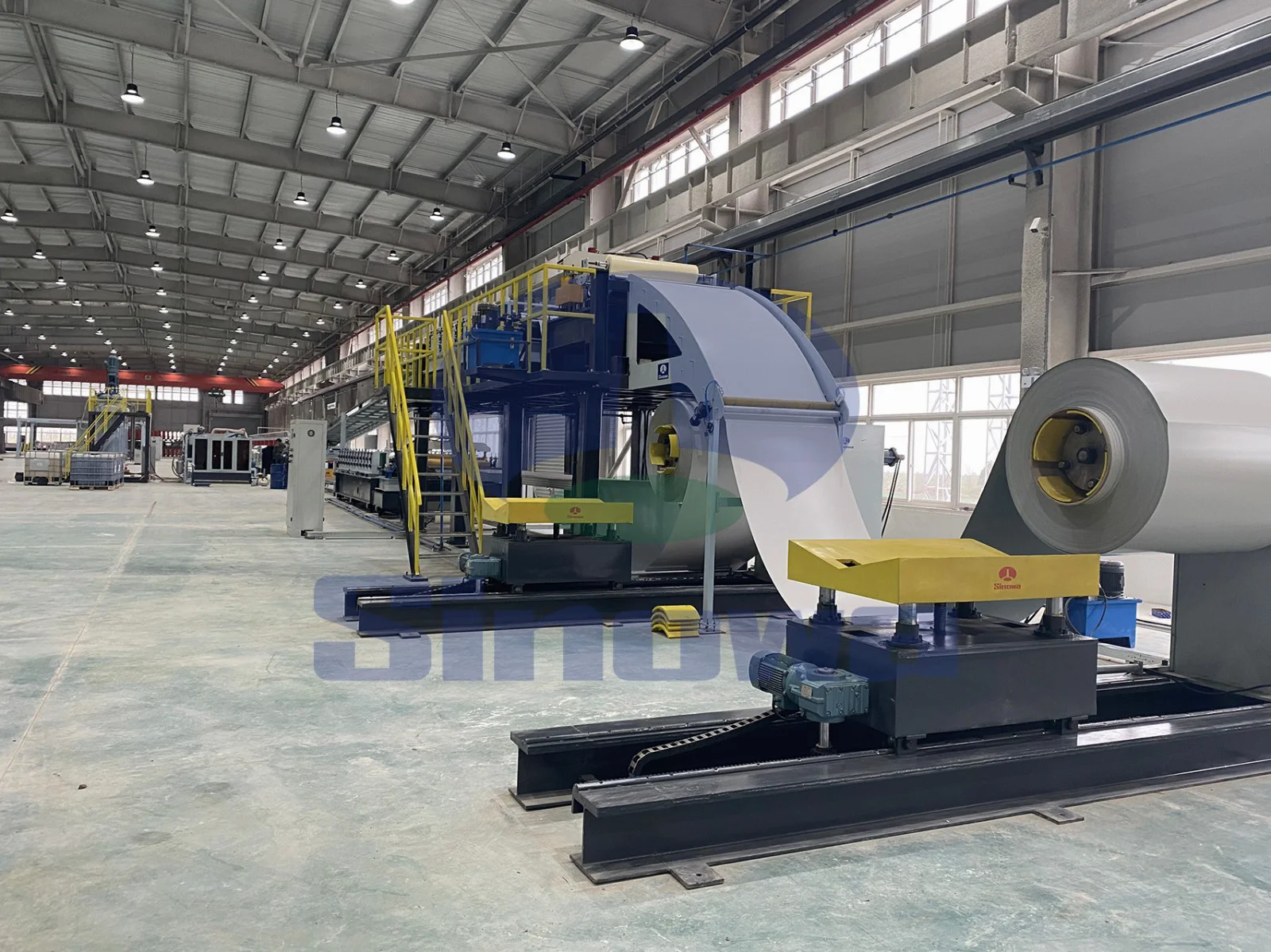

Uncoiling system: responsible for unfolding metal coils (usually color coated steel plates, aluminum plates, or stainless steel plates), which is the starting point of the production line. Modern uncoiling systems are often equipped with hydraulic devices that can handle steel coils weighing up to 2000kg, with an outer diameter typically of 1200mm and an inner diameter between 450-530mm.
Forming system: Process flat metal into specific waveforms or shapes through multiple sets of rolling equipment. The high-end color steel board production line can produce more than 5 different board types, including hidden corrugated wall panels, socket panels, etc., with a molding width of up to 1200mm.
Core material processing system: Different processing units are configured according to the type of core material (rock wool, polyurethane, etc.). For materials such as rock wool, a fully automatic feeding system and glue spraying device will be equipped; For foam materials, foaming system may be configured.
Composite host: The core part of the color steel sandwich panel plant, which firmly adheres the metal panel to the core material through double track heating and pressure. The track heating length of high-end equipment can reach 12 meters (expandable to 18 meters), using electric heating method with precise temperature control.

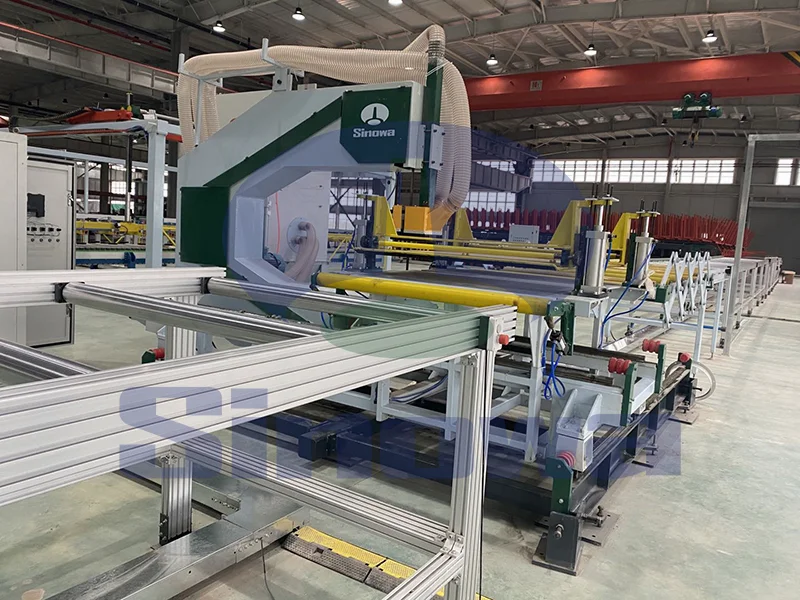

Cutting system: adopting CNC fixed length cutting device with an accuracy of ± 1mm. Some advanced sandwich panel production lines are equipped with five axis machining centers to achieve intelligent cutting and greatly improve efficiency.
Stacking and packaging system: Automatically organize and package finished products, reduce manual intervention, and improve the overall automation level of the production line.
The main technical indicators of the color steel sandwich panel machine determine its production capacity and scope of application:
Power configuration: The entire color steel sandwich panel assembly line has a power of about 30KW (including heating system), and adopts variable frequency vector control technology to achieve energy-saving operation.
Production speed: 0-6 meters/minute stepless speed regulation (digital display), actual production speed is usually maintained at 3-5 meters/minute.
Production capacity: capable of producing 100-280 square meters of boards per hour, with an annual output of up to 800000 to 1 million square meters.
Applicable materials:
Outer metal: 0.2-1.6mm thick color steel plate, aluminum plate, stainless steel plate
Core material thickness: 50-300mm (flat), 50-150mm (corrugated board)Product specifications:
Width: Standard 950mm, 980mm, 1050mm, 1150mm, also customizable
Length: Continuous production, cut as needed (usually up to 12 meters)
According to different core materials and production processes, color steel sandwich panel lines are mainly divided into several types:
Rock wool color steel sandwich panel production line
For application scenarios with high fire prevention requirements:
Equipped with automatic rock wool feeding system (bulk density ≥ 120kg/m ³)
Adopting double-sided spray adhesive technology to ensure a bonding strength of ≥ 0.09MPa
The fire rating of the product can reach Class A and is non flammable
Suitable for high temperature environments with a usage temperature of up to 500 ℃
Polyurethane (PU/PIR) color steel sandwich panel production line
High end composite board production equipment:
Configure a five component polyurethane high-pressure foaming machine
Implement PIR (polyisocyanurate) process to enhance fire resistance performance
The combustion performance of the board meets the B1 level flame retardant standard
Bending capacity ≥ 0.5Kn/m ² (deflection Lo/200)
Multi functional composite insulation board production line
Flexible adaptation to various production needs:
By changing the mold, different plate shapes can be produced
Compatible with multiple core materials (mineral wool, rock wool, glass wool, polyurethane, etc.)
Equipped with a touch screen human-machine interface, parameter adjustment is convenient
Automatic counting and correction system ensures product consistency
The modern color steel sandwich panel machinery integrates multiple advanced technologies and has significant advantages:
High degree of automation: The entire line only requires 5-7 operators, with full automation control from unwinding to palletizing. Adopting CNC servo technology and hydraulic control technology to achieve precise operation, combined with PLC system to achieve intelligent production.
Outstanding production efficiency: Compared to traditional equipment, the efficiency of automated production lines is improved by 3-5 times. Taking a 120 meter long rock wool production line as an example, the daily output can reach 3000-4000 square meters.
Energy saving and environmental protection: The new production line adopts electric heating instead of traditional coal-fired heating, reducing energy consumption by more than 30%. The polyurethane foaming system achieves closed mold operation to reduce exhaust emissions.
Stable product quality: The computer-controlled stepless speed regulation system ensures stable operating speed, with product tolerances controlled within ± 0.5mm. High frequency corona treatment enhances the bonding strength of materials and extends their service life.
The products produced by the color steel sandwich panel equipment are widely used in:
Industrial buildings: large-span roofs and walls of factories and warehouses
Commercial facilities: insulation and enclosure structures for supermarkets and logistics centers
Special places: purification room, cold storage, communication base station, laboratory
Temporary buildings: activity board houses, construction site offices, exhibition venues
The production line of color steel sandwich panels is a complex system that integrates mechanical, electrical, and automation control. Its technological content and degree of automation directly affect product quality and production efficiency. When making investment choices, it is necessary to comprehensively consider one's own needs, equipment performance, and manufacturer services in order to obtain the best investment return.
Color steel sandwich panels have become an indispensable building material in modern construction due to their integrated advantages of load-bearing, thermal insulation, waterproofing and decoration, and the production line that manufactures these panels plays a crucial role in ensuring product quality, production efficiency and application diversity. The color steel sandwich panel production line is a set of integrated equipment combining mechanical, electrical and pneumatic technologies, which realizes the continuous and automated production of sandwich panels by processing surface materials, core materials and adhesives through a series of sequential processes.
The structure of the color steel sandwich panel production line is designed based on the production process of sandwich panels, consisting of multiple functional stations connected in sequence to form a continuous production system. Each station undertakes specific processing tasks, and the coordination between them directly affects the stability of production and the quality of finished products. The basic structural components usually include uncoiling stations, profiling stations, glue application stations, core material conveying stations, composite pressing stations, trimming and cutting stations, and electrical control systems. The uncoiling station is responsible for unwinding the coiled color steel plates (surface materials) stably, and is equipped with tension adjustment devices to avoid material deviation or damage during the uncoiling process; this station can adapt to different widths and thicknesses of color steel coils, laying a foundation for producing panels of various specifications. The profiling station is a key part for processing the surface shape of color steel plates, which uses roller forming technology to gradually press flat steel strips into the required shapes—common ones include flat panels for walls and corrugated panels for roofs with diversion convex strips. To solve the problem that traditional profiling equipment cannot be shared between different specifications, advanced production lines integrate multiple profiling machines on a single station, equipped with guide rails and drive devices to realize rapid switching and precise positioning of profiling machines, avoiding the waste of equipment redundancy and improving production flexibility.
The glue application station is responsible for uniformly applying adhesives to the surface of color steel plates or core materials, and the uniformity and dosage control of glue application directly determine the bonding strength and durability of sandwich panels. This station is usually equipped with gear pumps and uniform spreading devices, and the glue flow can be adjusted by frequency conversion to adapt to different production speeds and panel specifications, ensuring that the adhesive is evenly distributed without accumulation or omission. The core material conveying station transports the core material (such as polystyrene, polyurethane, rock wool, glass wool) to the composite area, and is equipped with leveling devices to ensure that the core material is flat and aligned with the upper and lower color steel plates. For bulk core materials such as rock wool, the station also needs to complete preliminary shaping to ensure the thickness uniformity of the finished panel. The composite pressing station is where the upper and lower color steel plates and the core material are bonded into an integrated structure; this station uses heating and pressing technology to promote the curing of the adhesive, and the pressure and temperature are precisely controlled to ensure that the three layers are closely bonded without gaps. The trimming and cutting station is used to trim the edges of the composite panels to remove burrs and irregular parts, and cut the continuous panels into fixed-length products according to production requirements; the cutting process adopts electric or pneumatic cutting methods, with high positioning accuracy and smooth cutting surfaces, avoiding damage to the panel structure. The electrical control system is the "brain" of the entire production line, usually adopting PLC control and touch screen operation, which can realize automatic control of the entire production process, including speed regulation, parameter setting, fault alarm and counting statistics. The integration of these structural components enables the production line to complete the entire production process from raw materials to finished products in one go, ensuring production continuity and stability.
The performance of the color steel sandwich panel production line is reflected in multiple aspects such as production efficiency, processing accuracy, flexibility, stability and energy conservation, which are important indicators to measure the quality of the production line. Production efficiency is one of the core performance indicators, usually expressed by production speed and hourly output. Advanced production lines adopt frequency conversion stepless speed regulation technology, and the production speed can be adjusted within the range of 0-6 meters per minute according to actual needs, with an hourly output of 100-280 square meters, which can meet the production needs of different scales. Processing accuracy directly affects the dimensional consistency and installation adaptability of finished panels; the profiling station of high-performance production lines adopts precision-machined rollers (usually 45 steel after heat treatment, with a chrome plating thickness of 0.05-0.06 mm) and high-precision positioning components (including sensors and trigger blocks), which can ensure that the profiling shape meets design requirements, and the positioning error is controlled within a small range. The composite pressing station uses uniform pressure distribution technology to ensure that the thickness deviation of the finished panel is small, and the bonding strength between layers meets the application standards.
Flexibility is an important performance to adapt to market demand diversification. Modern production lines can not only switch between different panel types (wall panels and roof panels) quickly, but also adapt to different core material types and thicknesses—the core material thickness can usually be adjusted between 50-250 mm for flat panels and 50-150 mm for corrugated panels. In addition, the production line can also produce panels of different widths, with the maximum forming width of flat panels up to 1200 mm and that of corrugated panels up to 980 mm, meeting the needs of different construction scenarios. Stability is the guarantee of continuous production; the production line adopts high-quality mechanical components and a reasonable structural design to reduce equipment failure rate during long-term operation. The electrical control system is equipped with fault detection and alarm functions, which can timely find and prompt equipment abnormalities, reducing production interruptions caused by faults. Energy conservation and environmental protection are the development trends of modern production equipment; the production line optimizes the heating system and power configuration, reducing energy consumption while ensuring production efficiency— the total power of the equipment is usually about 30KW (including heating power), and the energy utilization rate is significantly improved compared with traditional production lines. At the same time, the production line adopts environmentally friendly adhesives and processing technologies, reducing the emission of harmful substances and meeting the requirements of green production.
The types of color steel sandwich panel production lines can be divided according to different classification standards, and the main classification methods include core material type, product type and automation level. According to the type of core material processed, the production line can be divided into polystyrene (EPS) sandwich panel production lines, polyurethane sandwich panel production lines, rock wool sandwich panel production lines, glass wool sandwich panel production lines and magnesium oxide sandwich panel production lines. EPS sandwich panel production lines are suitable for processing self-extinguishing polystyrene as core material, with the advantages of low production cost and good thermal insulation performance, and are widely used in the production of movable rooms and general industrial workshops. Polyurethane sandwich panel production lines use flame-retardant rigid polyurethane foam as core material, which has excellent thermal insulation and waterproof performance, and is suitable for high-demand scenarios such as cold storage and high-end industrial buildings. Rock wool and glass wool sandwich panel production lines are mainly used to process inorganic fire-resistant core materials; the produced panels have A-level fire resistance, can withstand high temperatures of 600°C, and are suitable for fire-proof and thermal insulation projects such as electronic clean rooms, explosion-proof workshops and power equipment rooms. Magnesium oxide sandwich panel production lines process magnesium oxide as core material, and the finished panels have the characteristics of high strength, moisture resistance and corrosion resistance, which are widely used in medical, biological engineering and other fields with high hygiene requirements.
According to the type of finished products, the production line can be divided into wall panel production lines and roof panel production lines. Wall panel production lines are mainly used to produce flat color steel sandwich panels, which have good flatness and decoration, and are suitable for the inner and outer walls of buildings. Roof panel production lines focus on processing corrugated sandwich panels with diversion convex strips, which have excellent waterproof and load-bearing performance, can effectively guide rainwater discharge, and are suitable for the roofs of industrial plants, warehouses and large-span steel structure buildings. Some advanced production lines integrate the functions of wall panel and roof panel production, and can realize the switching of product types through simple adjustment, improving equipment utilization. According to the level of automation, the production line can be divided into semi-automatic and fully automatic production lines. Semi-automatic production lines need manual assistance in some links (such as core material feeding and edge trimming), which is suitable for small-scale production with low investment cost. Fully automatic production lines realize the automatic operation of the entire process from raw material feeding to finished product output, with high production efficiency and stable product quality, and are suitable for large-scale mass production, conforming to the development trend of modern intelligent manufacturing.
The application scope of the color steel sandwich panel production line is closely related to the application scenarios of the finished color steel sandwich panels, covering industrial buildings, commercial buildings, agricultural buildings, public facilities and special emergency scenarios, and has broad market prospects. In the field of industrial buildings, the production line is widely used in the production of panels for industrial plants, warehouses, logistics centers and equipment machine rooms. The color steel sandwich panels produced have the characteristics of light weight and high strength, which can meet the structural requirements of large-span plants; their good thermal insulation and sound insulation performance can create a comfortable production environment, and the smooth surface is easy to clean, which is especially suitable for food processing, electronic manufacturing and other industries with high cleanliness requirements. For warehouses and logistics centers, the produced panels have excellent fire and waterproof performance, which can effectively protect stored goods, and the fast production speed of the production line can shorten the construction cycle of the warehouse, meeting the needs of enterprises to put into production quickly.
In the field of commercial buildings, the production line provides supporting panels for large shopping malls, exhibition centers, stadiums and hotels. The rich color options of color steel sandwich panels can coordinate with the overall design style of commercial buildings, improving the aesthetic appearance of the building; the light weight characteristic reduces the load of the building structure, providing more design possibilities for large commercial spaces. Exhibition centers and stadiums often use temporarily built or semi-permanent structures. The panels produced by the production line have the advantages of modular design, convenient assembly and disassembly, which can meet the needs of short-term activities, and the good sound insulation effect can provide a comfortable acoustic environment for the activities. In the field of agricultural buildings, the production line is used to produce panels for greenhouses, livestock and poultry farms, and agricultural product processing facilities. The light-transmitting and thermal insulation panels produced are suitable for greenhouse construction, which can reduce heat loss and lower winter heating costs, while ensuring sufficient strength to resist wind and snow loads. For livestock and poultry farms, the moisture-proof and corrosion-resistant panels can resist the high humidity environment in the farm, extend the service life of the building, and the easy-to-clean surface meets the hygiene and epidemic prevention requirements.
In the field of public facilities, the production line provides panels for school gymnasiums, hospital isolation wards, airport and station auxiliary facilities. The fire performance of the produced panels meets the safety standards of public buildings, and the light weight characteristic reduces the requirements for the foundation of the building, which is suitable for areas with poor geological conditions. For hospitals, the antibacterial surface treatment of the panels can inhibit the growth of bacteria, meeting the requirements of medical and health environments, and the fast production capacity of the production line can play an important role in the construction of emergency medical facilities. In special scenarios, such as post-disaster temporary housing and mobile houses, the production line can quickly produce a large number of panels. The panels have the advantages of fast installation and good thermal insulation, which can provide comfortable living conditions for disaster victims in a short time. The mobile houses and container buildings composed of color steel sandwich panels are easy to transport and flexible to combine, which can meet the needs of field operations, temporary offices and other scenarios.
With the continuous development of the construction industry, the demand for color steel sandwich panels is constantly increasing, and the color steel sandwich panel production line is also developing towards intelligence, integration and environmental protection. Future production lines will further improve the level of automation and intelligence, realize intelligent monitoring and adjustment of the production process through the integration of Internet of Things and big data technologies, and improve production efficiency and product quality. At the same time, the integration degree of the production line will be further enhanced, integrating more functional modules to realize the integrated production of multi-specification and multi-type panels, reducing equipment investment and floor space. In terms of environmental protection, the production line will adopt more environmentally friendly materials and energy-saving technologies, reducing energy consumption and pollutant emissions, and conforming to the concept of green and low-carbon development. In addition, with the expansion of the application field of color steel sandwich panels, the production line will be continuously optimized and improved to adapt to the special needs of different industries, such as higher fire resistance, corrosion resistance and sound insulation performance, further expanding the application scope of color steel sandwich panels and promoting the sustainable development of the construction material industry.
