What Is A PU Sandwich Panel Machine Used For In Industrial Production?

Publication Date: Oct 7, 2026

A PU sandwich panel machine manufactures insulated PU foam core panels bonded with surface sheets for prefab buildings, cold storage and clean rooms. It delivers thermal insulation, soundproof & lightweight construction boards.

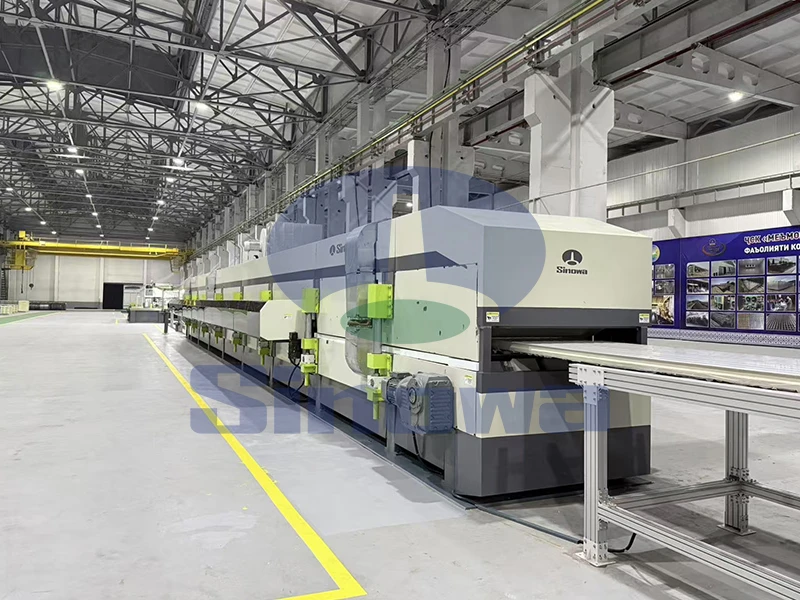

A PU sandwich panel machine is specialized industrial equipment for continuous or semi-continuous fabrication of polyurethane sandwich panels. It combines raw material feeding, foaming, laminating, pressing, curing, trimming and cutting in one production workflow to form composite panels with a PU foam core and two layers of surface sheets, and these finished panels are widely supplied for construction, cold storage, transportation and other industrial sectors.

What Is A PU Sandwich Panel Machine Used For In Industrial Production?

Basic Working Principle of the Equipment

This PU sandwich panel machine takes different surface materials and polyurethane foaming materials as raw inputs. After the surface layers are unreeled and conveyed steadily, the liquid PU materials are mixed and evenly poured between the upper and lower face sheets. Under controlled temperature and pressure inside the pressing section, the PU mixture reacts, expands and solidifies into a closed-cell foam core, which bonds tightly with the surface materials to form an integrated sandwich structure. After sufficient curing, the continuous panel strip will be cut into custom lengths as required. The whole process realizes automated molding and avoids manual bonding operations.

Common Types of Finished PU Sandwich Panels

Different configuration designs of the machine support producing panels with varied surface facings. Metal sheets are the most common facing material for rigid panels, while flexible sheet materials can also be adopted for special application demands. The thickness of the PU foam core can be adjusted by changing the spacing of pressing rollers, which directly changes the thermal insulation performance and mechanical strength of the final panels. The machine can also adjust formula parameters to produce panels with different fire resistance and density properties to fit different usage scenarios.

Main Application Scenarios of Produced Panels

Panels made by this machine are valued mainly for excellent heat insulation, light weight and good structural rigidity. A large portion of the products are used for building enclosure systems, including wall and roof cladding of prefabricated buildings, workshops and temporary structures. They are also essential materials for cold chain facilities such as cold rooms and refrigerated warehouses, as the PU core effectively blocks heat transfer and keeps stable internal temperatures. In addition, these composite panels are applied for making the compartments of refrigerated transport vehicles and special equipment enclosures that require thermal insulation.

Core Advantages Brought by the Machine in Production

Using this integrated machine greatly improves production efficiency compared with separate manual or batch molding methods. It ensures consistent thickness, uniform foaming density and stable bonding strength across batches of panels. Automated operation reduces labor demand and lowers the risk of uneven glue application or foaming defects. The adjustable production parameters also give flexibility to switch between different panel specifications on the same line, helping manufacturers meet diversified order requirements for composite insulation panels.

Supporting Auxiliary Functions of the Production Line

A complete PU sandwich panel machine line is equipped with matched auxiliary units besides the main foaming and pressing host. These units include unreeling racks for surface materials, preheating devices, edge trimming saws, length cutting mechanisms and finished panel stacking frames. Some lines add surface embossing or groove forming modules to produce panels with special assembly structures for easier on-site installation. All auxiliary sections coordinate with the main machine to form a closed continuous production flow.

Matters for Stable Operation

To keep consistent panel quality, operators need to monitor raw material mixing ratios, reaction temperature, line speed and pressing pressure during running. Improper parameter setting may lead to problems such as insufficient foaming, core delamination between foam and face sheets, or surface deformation. Regular maintenance of mixing heads, conveying rollers and sealing parts helps avoid production shutdowns and reduces the rate of defective composite panels. Proper waste collection for leftover materials is also arranged on the line to maintain a tidy production environment.
