What Pressure Parameters Control PU Foaming In A Sandwich Panel Line?
Publication Date: Oct 26, 2026
Discover key pressure parameters controlling PU foaming for sandwich panel lines, including metering, impingement mixing, back pressure, laminating pressing pressure and internal foam rise pressure, and how they affect mixing, cell structure, density, skin adhesion and finished panel quality.
In a continuous sandwich panel production line, the physical quality of the finished board—its density distribution, adhesion strength, surface finish, dimensional stability, and thermal performance—is largely decided not by the chemical formulation alone but by a set of interdependent pressure parameters that govern every stage of the polyurethane foaming process. These pressures act as the mechanical language through which the reactive mixture is metered, mixed, injected, expanded, and finally locked into a rigid cellular structure between two facing skins. Understanding which pressures matter, how they interact, and what happens when they drift is essential to anyone responsible for process control, because a change of only a fraction of a bar at the mixing head can produce a board that is acceptable on the surface yet defective in its core, or one that fails catastrophically under load. The pressure system of a sandwich line is therefore not a collection of independent setpoints but a tightly coupled network, and effective operation requires treating it as such.

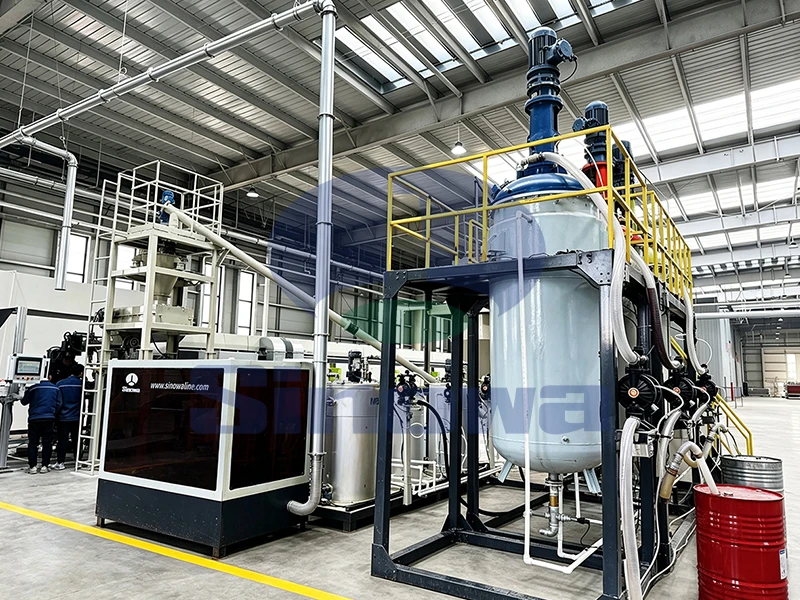

The first family of pressures is encountered at the metering and delivery stage, where the polyol and isocyanate components are fed from their tanks to the mixing head. Positive feed pressure on each component stream, typically generated by gear pumps or piston metering units, serves two distinct functions. On one hand it overcomes the hydraulic resistance of hoses, filters, and valves so that the precise volumetric ratio designed in the formulation is actually delivered to the mix chamber; on the other hand it provides the counterpressure that suppresses premature boiling and cavitation in the lines, which would otherwise introduce bubbles and ratio errors long before the material reaches the head. The critical subtlety here is that the nominal pump discharge pressure is far less important than the differential pressure between the two streams at the point of injection. If the polyol stream runs at a noticeably higher pressure than the isocyanate stream, the higher-viscosity or higher-pressure component can push into the other line, contaminating it and altering the ratio in an uncontrolled way, whereas equalized injection pressures keep the two liquids meeting in a stable, symmetric interface inside the mix chamber. Operators therefore watch the component pressures not as absolute values but as a matched pair, and drift in the differential is one of the earliest warning signs of a worn pump, a clogged filter, or a partially blocked nozzle.
The mixing head itself is the second and arguably most decisive locus of pressure control. In high-pressure impingement mixing—the dominant technology in modern panel lines—the two liquid streams are forced through small orifices at very high velocity so that they collide and turbulently intermix in a fraction of a second. The parameter that quantifies this process is the injection pressure, which must be high enough to generate the kinetic energy required for rapid, homogeneous mixing but not so high as to cause excessive shear heating or atomization beyond what the formulation can tolerate. When the injection pressure is too low, the streams do not impinge with sufficient momentum, mixing becomes coarse and inconsistent, and the reacting mixture leaves the head with composition gradients that show up later as soft spots, density striations, and variable cell structure across the board. When it is too high, the added energy can raise the local temperature of the mixture, accelerating the reaction and shortening the cream time, which in turn leaves the operator with an over-reactive shot that begins to foam before it has been evenly distributed across the panel width. The mixing pressure also interacts with back pressure inside the mix chamber: a controlled chamber pressure prevents the expanding, low-viscosity mixture from flashing prematurely and ensures that the discharge through the head is smooth and continuous rather than pulsing, which is essential when the head is traversing back and forth across a moving substrate to lay down a uniform film.
Once the reacting mixture has been deposited onto the lower facing skin, the process shifts to the forming and expansion stage, where the geometry of the panel is shaped by the pressure exerted on the material during its rise. In a continuous double-belt line, the upper skin is lowered onto the foaming mixture and the entire composite passes through a heated press section, and the pressure applied there—the pressing or laminating pressure—controls how the rising foam is contained, how it is distributed to fill the edges and corners, and how firmly it is pressed against both facings. Too little pressing pressure allows the expanding foam to bulge, to push the skins apart locally, or to rise unevenly so that the panel thickness varies along its length; the foam can also tear away from the facings, producing hollow zones and poor adhesion. Too much pressure, by contrast, compresses the growing cells, squeezes material out at the edges, forces excess density into the core, and can even crush the delicate cell walls that have already formed, permanently damaging the insulating structure. Because the foam rises and its internal pressure changes continuously during the reaction, the ideal laminating pressure is not a constant but a profile that must match the kinetics of the particular formulation, typically starting generous enough to hold everything in place and relaxing as the foam's own rigidity begins to bear the load.
This brings into focus the internal foaming pressure, which is distinct from the externally applied machinery pressures because it is generated from within the material by the vaporization of the blowing agent and the gas released during the reaction. The internal pressure rises as the mixture heats and expands, reaches a peak around the time the gel point is approached, and then decays as the polymer network stiffens and the cells stabilize. It is this internal pressure that actually drives the foam against the facings and determines the adhesion at the interface, and it is also what governs the density and the fineness of the cell structure. If the internal pressure peaks too early or too late relative to the gelation of the resin, the result is either a collapsed, high-density core or an over-expanded, low-density one with weak mechanical properties. In practice, the operator does not measure the internal pressure directly but infers it from its effects—from the density of the finished board, from the adhesion test results, and from the uniformity of the cell distribution—and then adjusts the external process parameters, chiefly temperature and the injection and laminating pressures, to bring the internal expansion into the correct phase relationship with the chemical cure.
A fourth set of pressures governs the interface where the foam meets the facings, and these are the pressures that determine whether the finished panel has genuine structural adhesion or merely superficial contact. During the rise phase, the expanding foam must push itself firmly against the steel skin or aluminum foil and wet it completely, displacing trapped air and filling every microscopic depression on the metal surface. The effective contact pressure at this interface is a combination of the internal foaming pressure and the externally applied laminating pressure, and it must be sufficient to overcome the tendency of the mixture to shrink as it cools and to pull away from the metal. If the contact pressure is inadequate, the bond fails under the residual stress that develops during cooling, and the skin delaminates, producing a panel that rattles, creaks, or separates under modest handling. Operators often speak of this as a "wetting" problem rather than an adhesion problem, because the chemistry of the adhesive bond is usually sound; it is the mechanical pressure that decides whether that chemistry ever gets the chance to work. Maintaining this interface pressure therefore requires balancing the injection pressure, which governs how well the mixture wets the substrate at the moment of deposit, with the laminating pressure, which governs how firmly it is held during the rise, and with the internal foaming pressure, which determines how aggressively the foam pushes outward.
Beneath all of these dynamic pressures lies the steady-state baseline of the hydraulic system, whose stability is the precondition for every other parameter to mean anything. The component pressures, the mixing injection pressure, the chamber back pressure, and the laminating pressure are all ultimately functions of the hydraulic oil pressure that drives the metering pumps and the press cylinders, and fluctuations in that baseline—whether from pump wear, oil temperature changes, or hydraulic valve drift—propagate through the entire system in ways that are difficult to diagnose at the panel level. A slow decline in hydraulic pressure, for example, might first manifest not as an obvious fault but as a subtle rise in board density or a gradual loss of edge definition, and an operator who treats these as formulation problems will spend days adjusting chemistry while the real cause sits quietly in the hydraulics. Conversely, a sudden spike in oil pressure can momentarily overdrive the metering pumps, producing a ratio error that corrupts an entire production batch before it is detected. This is why the most experienced line operators treat pressure stability—measured as repeatability shot to shot and across the duration of a shift—as a first-order quality indicator, more valuable than any single absolute setpoint, and why they log pressure trends over time rather than relying on momentary readings.
Because no single pressure parameter can be optimized in isolation, the practical control of a sandwich panel line is an exercise in multivariable balancing. Raising the injection pressure improves mixing but raises the mixture temperature and shortens cream time, which demands a compensating adjustment in the traverse speed or the metering rate; lowering the laminating pressure improves core density and reduces crushing but weakens skin adhesion, which may then require a small increase in the internal foaming pressure through a change in the blowing agent loading or the reaction temperature. Every adjustment propagates through the network, and the skilled operator develops an intuitive model of these couplings that allows them to anticipate the second-order effects of any change. This is also why modern control systems increasingly monitor the pressure signals in real time, correlate them with the density and adhesion data from finished boards, and use the correlations to hold the process within a narrow envelope rather than simply clamping the pressures at fixed values. The result is that pressure parameters in a modern sandwich line are not merely setpoints to be dialed in once and forgotten; they are live, interactive variables whose careful management is the difference between a panel that meets every performance expectation and one that looks identical on the outside but fails silently in the field. The engineer who masters these couplings can hold density, adhesion, thickness, and flatness simultaneously within tight tolerances, while the operator who treats each pressure as an independent dial will always be chasing defects that seem to move every time they are adjusted. In the end, the pressure system is the physical skeleton of the foaming process, and understanding it is not a matter of memorizing values but of learning how the skeleton moves.
